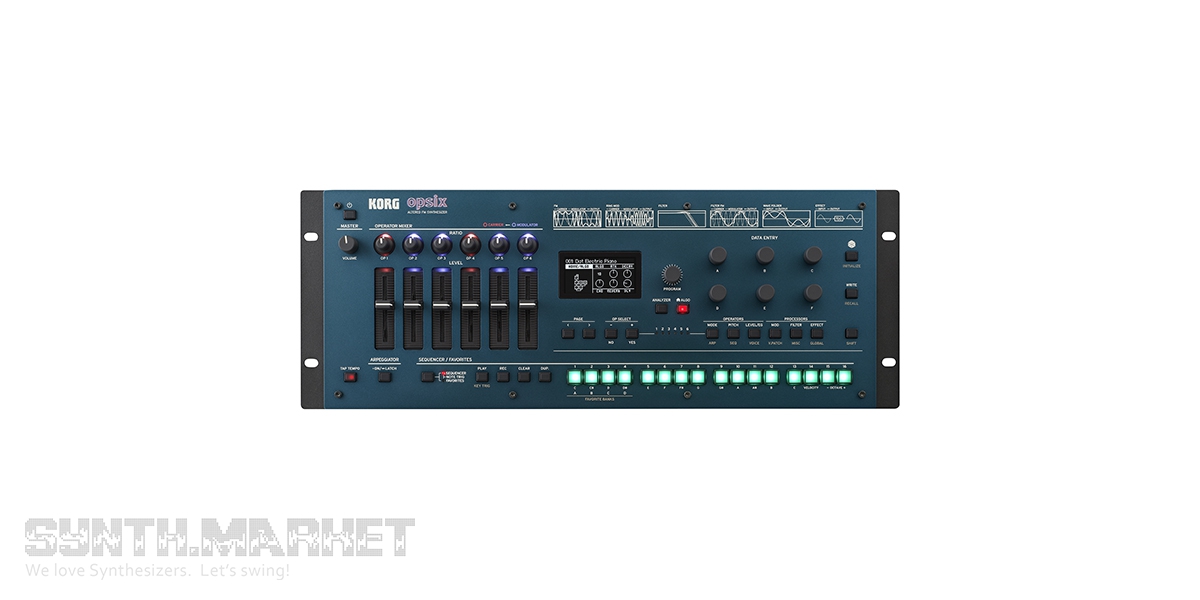

Korg opsix module

FM Synthesizer module

DescriptionImagesTech specsCompatibleAlternativeFAQComments

Product Images: click to view fullsize version.

650.00

street price

Country of origin / production: Viet-nam

Recommend product to a friend

Usage area
Synthesizer
Sound Module/ Tone Generator
Usage Design/ Form Factor
Without Keys, Desktop
Rackmount, 4U
Archetype
Digital (D)
Polyphony
Voices	64
Tone Generator / Sound Synthesis
Synthesis Method	Frequency Modulation (FM)
FM Operators	6
FM Algorhitms	40
Waveform/ Spectral form (main generator)	Sine
Waveform/ Spectral form (main generator)	Square
Waveform/ Spectral form (main generator)	Triangle
Waveform/ Spectral form (main generator)	Saw
Waveform/ Spectral form (main generator)	White Noise
Waveform/ Spectral form (main generator): Waveform Count	23
Programs/ Voices/ Timbres
Single Voice Preset	350
User-defined Single Voice	150
Filter
Digital (DCF)
High-pass Filter (HPF)
Low-pass Filter (LPF)
Band-pass Filter (BPF)
Envelope Generator (EG)
ADSR
Modulation
Modulation Matrix	4x Envelopes, 5x LFOs, 2x Mod Processors, 2x Key Track, Seq Lanes A-D, Step Pulse, Tempo, Program/Performance Note Count&Voice Count, Poly Legato, Basic/ Exponential/ Release Velocity, Gate, Gate+Damper, Note-On Trigger, Aftertouch
LFO: LFO Count	3
LFO Waveforms
Sine
Square
Triangle
Saw
Up Saw
Down Saw
Sample&Hold
Effects
Reverb
Chorus
Flanger
Compressor
Delay
Phaser
Tremolo
Decimator
Equalizer
Parametric
Bands	4
Sequencer
Step Sequencer
Arpegiator/ Portamento
Arpegiator Mode	Up
Arpegiator Mode	Down
Arpegiator Mode	Random
Arpegiator Mode	User Assign
MIDI in/ out
IN
OUT
Display
Display type	OLED
External controllers
Damper pedal
Audio out
Stereo
All voices mixed in one output
Analogue: 1/4" (6.35mm)	2
Analogue: 1/4" (6.35mm) headphones preamplified	1
Computer Interfaces
USB	USB PC Link
Power
Voltage	12V
Power Supply	External
Power consumption	5 W
Amperage	2.5 A
Dimensions
Height	113 mm
Width	483 mm
Depth	172 mm
Weight	1.7 kg
Case/ body
Plastic
Color
Black
Green
Production start	2024
